Optional Accessories & Special
Versions:Date Coder, to Print Manufacturing Date, Expiry Date etc.

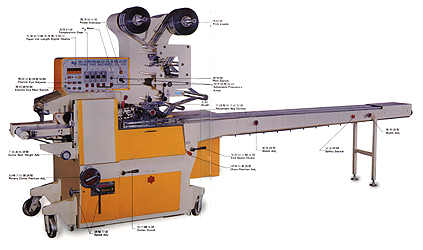

SH-103
HIGH SPEED UNIVERSAL TRIPLE SEALING PACKING MACHINE
Machine characteristics:
- Suitable for packing various solid materials capable of
vairable packing size.
- The length of the packaging paper is adjustable
computer control packing quantity and length can be shown on the screen.
- Equipped with adjustable frequency control motor can be
saved 1/4 electric power.
Main applications:instant noodle, biscuit, ice-pop, ice-bar chewing gum, chocolate bar,
handkerchiefs, facial paper, pre-moist toilet paper soaps.
| Packing Typs |
Pillow Type |
¡@ |
| Packaging Material |
Alum. Foil, Paper Laminated, etc. |
¡@ |
| Packaging Size:length |
50-400 |
mm |
| width |
10-180 |
mm |
| height |
4-60 |
mm |
| max. Width of Packing Material |
400 |
mm |
| Cutting Length of Packing Materia |
50-320 |
mm |
| Packing Speed |
Depending on packing size 25-230 |
bags/min |
Power Required-Equipped with
adiustable
frequency control motor. |
1HP 3.2KW |
¡@ |
| Wooden Case Size Length |
4500 |
mm |
| Width |
1300 |
mm |
| Height |
2100 |
mm |
| Machine Weight |
1000/NW |
kgs |
| G.W. |
1300/GW |
kgs |
| Machine Size Length |
4000 |
mm |
| Width |
1000 |
mm |
| Height |
1800 |
mm |
|

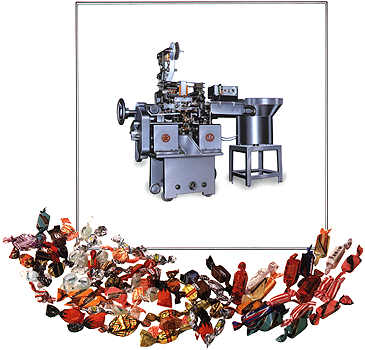

SH-218
AUTOMATIC PACKING MACHINE(DOUBLE ENDS TWISTING)
| DIMENSION:LENGTH |
9-50mm |
| WIDTH |
800 m/m |
| HEIGHT |
4-15mm |
| OUTPUT MAX. |
9-50mm |
| MOTOR |
1/2 HP |
| VIBRATION |
1/10 |
| MACHINE WEIGHT |
350Kgs |
| MACHINE SIZE H |
1500 m/m |
| W |
1000 m/m |
| L |
1400 m/m |
|

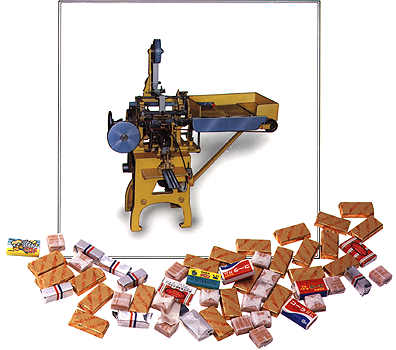

SH-219
AUTOMATIC PACKING MACHINE(four ends folding)
Machine characteristlcs:
High Speed Machine to form, cut and wrap hard caramel, toffee, soft, chewing gum or bubble
gum in four ends fold wrap.
| DIMENSION:LENGTH |
12-20 mm |
| WIDTH |
12-18 mm |
| HEIGHT |
5-15 mm |
| OUTPUT MAX. |
120-200 pieces/min |
| MOTOR |
1/4 HP |
| MACHINE WEIGHT |
200 kgs |
| MACHINE SIZE H |
1400 mm |
| W |
1000 mm |
| L |
1320 mm |
|

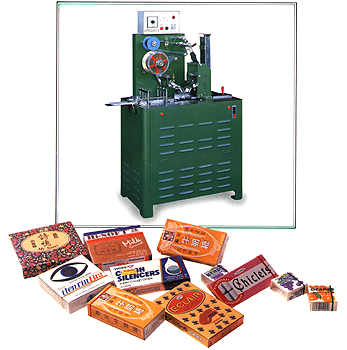

SH-901
HIG SPEED CELLOPHANE PACKING MACHINE
Machine characteristics:
Outbox added packing system of red line "OPP" "PE", its external look
shining. For example, chewing gum, chocolate, soft or hard caramel, record, motlon
picture, pill box serles of out box wrapping.
| Dimensions: Length: |
30-150 mm |
| Width: |
35-120 mm |
| Height: |
6-70 mm |
| Output: max. |
60-100 pieces/min |
| Moutor |
1/2 HP |
| Machine Size |
700x850x1400 mm |
| Machine Weight: |
700 kgs |
|

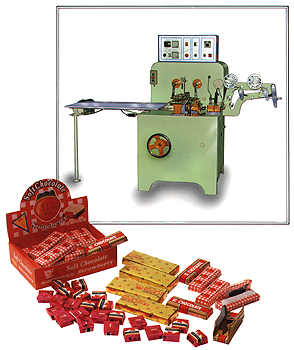

SH-902
AUTOMATIC CANDY SLICE PACKING MACHINE
Machine Characteristics:
(A) The machine can pack up rectangle, big or small, and heated in fold.
(B) It didn't need to seal by paste, always keep machine clean (heat seal)
(C) PT and aluminum-fold double layer packing
| Dimensions: Length: |
20-100 mm |
| Width: |
20-50 mm |
| Height: |
5-20 mm |
| Output: max. |
120-150 pieces/min |
| Moutor |
1 HP |
| Machine Weight: |
700 kgs |
| Machine dimension |
2200x1100x1550 mm |
|

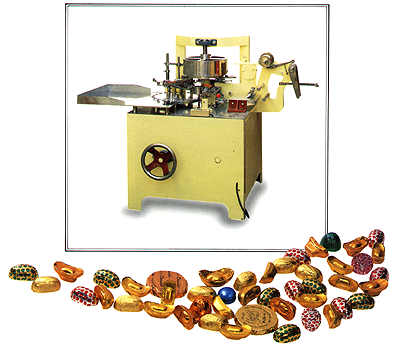

SH-903
AUTOMATIC UNUSUAL-SHAPE CANDY PACKING MACHINE
Machine Characteristics:
The machine can pack up many different styles easily. It is a packing machine that produce
dependent upon a new design and style of each factory.
Packing material:Aluminium-foil paper.
| Dimensions: Length: |
20-40 mm |
| Width: |
20-40 mm |
| Height: |
4-25 mm |
| Output: max. |
70-110 pieces/min |
| Moutor |
1 HP |
| Machine Weight: |
700 kgs |
| Length: |
900 mm |
| Width: |
1200 mm |
| Height: |
1200 mm |
|

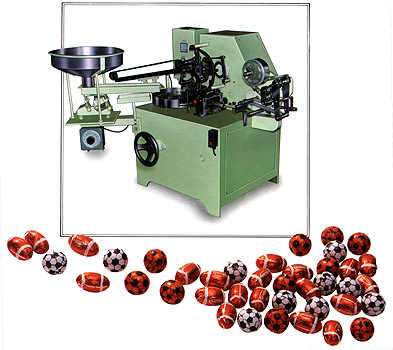

SH-904
AUTOMATIC BALL CANDY PACKING MACHINE
Machine characteristics:
The machine can pack up one spherical packing. Its speed is very quickly, correctly, and
haven't a defect or a bug. Material:Aluminium-foil paper.
| Dimensions: Length: |
12-35 mm |
| Width: |
12-35 mm |
| Height: |
2-35 mm |
| Output: max. |
130-170 pieces/min |
| Moutor |
1 HP |
| Machine Weight: |
800 kgs |
| Length: |
800 mm |
| Width: |
1750 mm |
| Height: |
1100 mm |
|

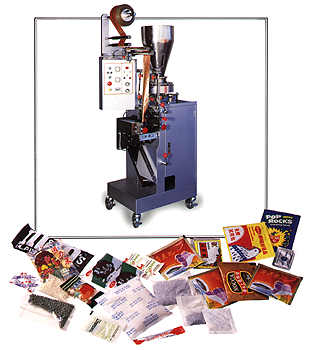

SH-905
AUTOMATIC FILLING & PACKAGING MACHINE
Machine Characteristics:
This vertical type small-bag packaging machine is special designed for filling dry
substances in heat sealable packaging materials. Heat sealing Wheels give continuous
sealing, While substances are automatically measured and filled. An electric-eye ensures
proper alignment of package designs and the packets are cut into individual finished
products.
| Finished Product
Dimensions |
A:Length:60-120mm Width:30-80mm
B:Length:100-200mm Width:50-120mm |
| Weight |
1-30 g |
| Output:Max. |
50-120 bags/min |
| Heater |
1.5 kw |
| Machine Weight |
300 kg |
| Machine Length |
650 mm |
| Width |
500 mm |
| Height |
1750 mm |
|

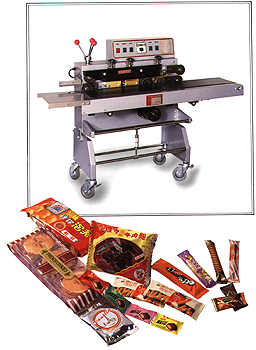

SH-906
BAND SEALER MACHINE
Machine Characteristics:
This vertical band sealer with two varlable speed devices for machine driving, which can
respectlvely adjust sealing speed and conveyer belt speed, allowing sealing temperature
available for all packed materials, powder,granulated particles, cream or liquid and
capacity of packing-contents in 85%.
| Sealing Thickness |
0.06-0.5(Total Thickness) mm |
| Size of Packing Bag |
Max. 30cm L x 25cm W |
| Sealing Width of
Adhesion Area |
10 mm |
| Sealing Speed |
10 mmin |
| Power Used |
100V.120V.200V.240V.
1 PHASE, 60W,5AMP,50/60HZ |
| Temperature Range |
0 . 300 C |
| Conveyor Belt Width
Conveyor |
20 cm |
| Load Weight of
Conveyor |
10 kgs |
| Dimensions |
130L x 54W x 100H cm |
| Net Weight |
100 kgs |
| Packing Weight |
200 kgs |
|

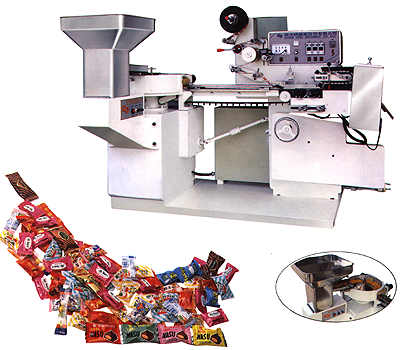

SH-101A
FULLY AUTOMATIC COMPACT TRIPLE SEALING PACKING MACHINE
Machine Characterlstics:
The machine is a packing machine of many effects that can pack up seven pieces to one
small pack in once packing, or pack up one, two three or five and so on in different
packing way.
Material:OPP,PET,Aluminium-foil paper.
| Dimensions: Length: |
15-30 mm |
| Width: |
10-30 mm |
| Height: |
4-25 mm |
| Output: max. |
600-800 pieces/min |
| Moutor |
2 HP |
| Heater |
6 kg. |
| Machine Weight: |
2000 kgt |
| Length: |
2300 mm |
| Width: |
1550 mm |
| Height: |
1700 mm |
