 SH-613
UNIVERSAL HIGH SPEED CRUSHING MACHINE
- Put granulated sugar in thisalmighty crusher to crush
it into the finest powder at 200 Mash.
- This machine is consisted of 24 pcs of sheet, and there
is magnet equipped inside. If any impurities in the granulated sugar, they will be
collected by the magnet. RPM:7200,output is 50 kg for 10 minutes. Machine outshell is all
made of aluminum alloy, and the hopper is made by stainless steel to be clean &
beautiful.
- Output=50kgs/10minute
- Machine size:L100xW950Xh1720mm
- Machine weight:400Kgs.
- Horse power:5HP.
|
 SH-300
DOUBLE LAYER WARMING AND MIXING MACHINE
- Machine size:L1000xW1000xH1900mm
- Machine capacity:100Kgs.
- Machine weight:1200Kgs.
- Horse power:1HP
SH-300A
DOUBLE LAYER WARMING AND MIXING MACHINE
- Machine size:L1700xW1700xH2300mm.
- Machine capacity:3000Kgs.
- Horse power:3HP.
|
 SH-400
STEAM MELTING AND MIXING MACHINE
- It is rigid with 25HP, doublelayer instasllation
provide the warm water & steam, easy stirring. Interior is made by stainless steel.
- Hydraulic device is equipped on to control the height.
- Machine size:L1860xW2130 xH1110mm.
- Machine weight:2000Kgs.
- Horsepower:25HP.
|
 SH-404A
3-4OLLING MILLS MACHINE
- This machine grind & mix chocolate.
- Machine size:L1720xW2460xH1220mm
- Machine weight:2200Kgs.
- Horse power:25HP.
- Capacity:2000Kgs/8HRS.
|
SH-301
WARMING WATER 2-PLY PUMP
- Convey and warming the chocolate.
- Machine size:L1000xW500xH500mm
- Machine weight:70Kgs.
- Horse power:2HP.
|
 SH-403
REFINERY MACHINE
- The surface which contact with chocolate were made of
granite.
- Grinding, deoxidize, deodorize increase the chocolate
smell well.
- Machine size:L1800xW1800xH1850mm.
- Machine weight:3000 Kgs.
- Horsepower:15Hp (4KW).
|
 SH-401.1
VIBRATOR CONVEYOR
- Machine sizeL1700xW800xH1000mm.
- Machine weight:2500kgs.
- Electronic:3KW.
- Vlbrate the mould and make the chocolate without air
bubble.
|
 SH-401
CHOCOLATE FILLING MACHINE
- Just change the shape mould, can be produce many kind
shape chocolate.
- Machine size: L1100 x W960 x H1800 mm
- Machine weight:800kgs.
- Electronic:4KW.
- Capacity:13kgs/minute
|
 SH-411
AUTOMATIC TEMPERING MACHINE
- Machine size:L1200xW1000xH2145mm
- Machine weight:1200Kgs.
- Horse power:1HP,3kw Heater
- Machine capacity:300Kgs/hr.
¡@
¡@
|
 SH-410
CHOCOLATE ROLLER FORMING MACHINE
SH-410A Bean Shape
SH-410B Ball Shape
SH-410C Rugby Shape
- Machine size: L1200 x W700 x H1560mm.
- Machine weight:2500Kgs.
- Horse power:2HP.
- Capacity:as belows.
¡@
| TYPE |
ROLLER WIDE |
ROLLERQ'TY |
CAPACITY kgs/hr |
| 400-1 |
400 |
1 |
125 |
| 400-2 |
400 |
2 |
250 |
| 600-1 |
600 |
1 |
187 |
| 600-2 |
600 |
2 |
375 |
| 600-3 |
600 |
3 |
562 |
|
 SH-410-1
CHOCOLATE SELECTION MACHINE
- This machine connect with the conveyer.
- Maachine size:L1380xW680 xH980mm.
- Machine weight:500Kgs.
- Horse power:1/4 HP.
¡@

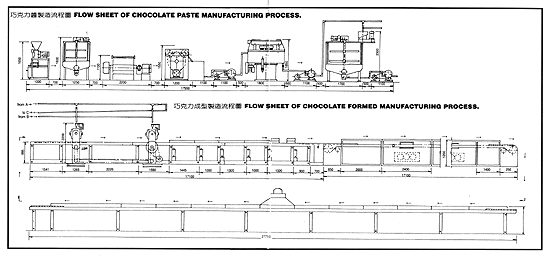

FLOW SHEET OF CHOCOLATE PASTE MANUFACTURING PROCESS.
|
